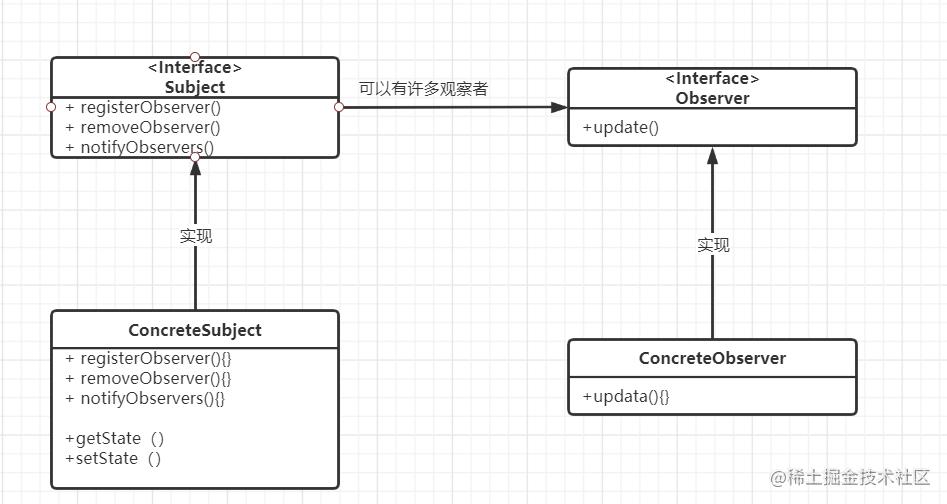

observer/observable

https://lddpicture.oss-cn-beijing.aliyuncs.com/picture/88f2cd998e3246bb9f44126f8c48fb90tplv-k3u1fbpfcp-zoom-in-crop-mark4536000.png

1. JDK-Observable 可观察对象类

public class Observable {
    private boolean changed = false;
    private Vector<Observer> obs;

    /** Construct an Observable with zero Observers. */

    public Observable() {
        obs = new Vector<>();
    }

    /**
     * Adds an observer to the set of observers for this object, provided
     * that it is not the same as some observer already in the set.
     * The order in which notifications will be delivered to multiple
     * observers is not specified. See the class comment.
     *
     * @param   o   an observer to be added.
     * @throws NullPointerException   if the parameter o is null.
     */
    public synchronized void addObserver(Observer o) {
        if (o == null)
            throw new NullPointerException();
        if (!obs.contains(o)) {
            obs.addElement(o);
        }
    }

    /**
     * Deletes an observer from the set of observers of this object.
     * Passing <CODE>null</CODE> to this method will have no effect.
     * @param   o   the observer to be deleted.
     */
    public synchronized void deleteObserver(Observer o) {
        obs.removeElement(o);
    }

    /**
     * If this object has changed, as indicated by the
     * <code>hasChanged</code> method, then notify all of its observers
     * and then call the <code>clearChanged</code> method to
     * indicate that this object has no longer changed.
     * <p>
     * Each observer has its <code>update</code> method called with two
     * arguments: this observable object and <code>null</code>. In other
     * words, this method is equivalent to:
     * <blockquote><tt>
     * notifyObservers(null)</tt></blockquote>
     *
     * @see     java.util.Observable#clearChanged()
     * @see     java.util.Observable#hasChanged()
     * @see     java.util.Observer#update(java.util.Observable, java.lang.Object)
     */
    public void notifyObservers() {
        notifyObservers(null);
    }

    /**
     * If this object has changed, as indicated by the
     * <code>hasChanged</code> method, then notify all of its observers
     * and then call the <code>clearChanged</code> method to indicate
     * that this object has no longer changed.
     * <p>
     * Each observer has its <code>update</code> method called with two
     * arguments: this observable object and the <code>arg</code> argument.
     *
     * @param   arg   any object.
     * @see     java.util.Observable#clearChanged()
     * @see     java.util.Observable#hasChanged()
     * @see     java.util.Observer#update(java.util.Observable, java.lang.Object)
     */
    public void notifyObservers(Object arg) {
        /*
         * a temporary array buffer, used as a snapshot of the state of
         * current Observers.
         */
        Object[] arrLocal;

        synchronized (this) {
            /* We don't want the Observer doing callbacks into
             * arbitrary code while holding its own Monitor.
             * The code where we extract each Observable from
             * the Vector and store the state of the Observer
             * needs synchronization, but notifying observers
             * does not (should not).  The worst result of any
             * potential race-condition here is that:
             * 1) a newly-added Observer will miss a
             *   notification in progress
             * 2) a recently unregistered Observer will be
             *   wrongly notified when it doesn't care
             */
            if (!changed)
                return;
            arrLocal = obs.toArray();
            clearChanged();
        }

        for (int i = arrLocal.length-1; i>=0; i--)
            ((Observer)arrLocal[i]).update(this, arg);
    }

    /**
     * Clears the observer list so that this object no longer has any observers.
     */
    public synchronized void deleteObservers() {
        obs.removeAllElements();
    }

    /**
     * Marks this <tt>Observable</tt> object as having been changed; the
     * <tt>hasChanged</tt> method will now return <tt>true</tt>.
     */
    protected synchronized void setChanged() {
        changed = true;
    }

    /**
     * Indicates that this object has no longer changed, or that it has
     * already notified all of its observers of its most recent change,
     * so that the <tt>hasChanged</tt> method will now return <tt>false</tt>.
     * This method is called automatically by the
     * <code>notifyObservers</code> methods.
     *
     * @see     java.util.Observable#notifyObservers()
     * @see     java.util.Observable#notifyObservers(java.lang.Object)
     */
    protected synchronized void clearChanged() {
        changed = false;
    }

    /**
     * Tests if this object has changed.
     *
     * @return  <code>true</code> if and only if the <code>setChanged</code>
     *          method has been called more recently than the
     *          <code>clearChanged</code> method on this object;
     *          <code>false</code> otherwise.
     * @see     java.util.Observable#clearChanged()
     * @see     java.util.Observable#setChanged()
     */
    public synchronized boolean hasChanged() {
        return changed;
    }

    /**
     * Returns the number of observers of this <tt>Observable</tt> object.
     *
     * @return  the number of observers of this object.
     */
    public synchronized int countObservers() {
        return obs.size();
    }
}

2. JDK-Observer 观察者

public interface Observer {
    /**
     * This method is called whenever the observed object is changed. An
     * application calls an <tt>Observable</tt> object's
     * <code>notifyObservers</code> method to have all the object's
     * observers notified of the change.
     *
     * @param   o     the observable object.
     * @param   arg   an argument passed to the <code>notifyObservers</code>
     *                 method.
     */
    void update(Observable o, Object arg);
}

3. demo

import java.util.Observable;

// 继承Observable类
// MyObservable 是一个被观察者
public class MyObservable extends Observable {

    public MyObservable() {}

    private volatile static MyObservable myObservable;

    public static MyObservable getInstance() {
        if (myObservable == null) {
            synchronized (MyObservable.class) {
                if (myObservable == null) {
                    myObservable = new MyObservable();
                }
            }
        }
        return myObservable;
    }

    // 发消息 给所有的观察者
    public void postMessage(String msg) {
        // 标记为已更改
        setChanged();
        // 如果已更改,通知所有的观察者
        notifyObservers(msg);
    }
}
import androidx.appcompat.app.AppCompatActivity;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import java.util.Observable;
import java.util.Observer;

public class MainActivity extends AppCompatActivity implements Observer {
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        // 把自己设置为观察者
        if (this instanceof Observer) {
            MyObservable.getInstance().addObserver(this);
        }

        // 点击button,触发 被观察者 发消息给 观察者
        findViewById(R.id.post_msg_bt).setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                // 调用 被观察者 的 postMessage 方法,通知所有的观察者
                MyObservable.getInstance().postMessage("ok");
            }
        });
    }

    // 接收回调
    @Override
    public void update(Observable observable, Object obj) {
        Log.d("AAAAAAAAA", "msg: " + obj);
    }
}
