YOLO4 Object Detection

1. Darknet

​ darknet是一个较为轻型的完全基于C与CUDA的开源深度学习框架,其主要特点就是容易安装,没有任何依赖项(OpenCV都可以不用),移植性非常好,支持CPU与GPU两种计算方式。

相比于TensorFlow来说,darknet并没有那么强大,但这也成了darknet的优势:

  1. darknet完全由C语言实现,没有任何依赖项;
  2. darknet支持CPU(所以没有GPU也不用紧的)与GPU(CUDA/cuDNN,使用GPU当然更块更好了);
  3. 正是因为其较为轻型,没有像TensorFlow那般强大的API,所以给我的感觉就是有另一种味道的灵活性,适合用来研究底层,可以更为方便的从底层对其进行改进与扩展;
  4. darknet的实现与caffe的实现存在相似的地方,熟悉了darknet,相信对上手caffe有帮助;

2. Yolo One-stage Detect

2.1 目录结构

其中:cfg文件:中括号+网络层的名字定义当前网络属于什么层。输入图像的信息;训练过程用到的信息;数据增强的一些信息;

2.2 目标检测的核心函数

YOLOv3的目标检测源代码,核心的函数包括:

detect_image() ; generate(); yolo_eval(); yolo_model();

yolo_boxes_and_scores(); yolo_head(); yolo_correct_boxes()

2.3 目标检测流程

YOLOv3的目标识别的源代码流程大致如下:

(1)设置缺省值并初始化:

https://lddpicture.oss-cn-beijing.aliyuncs.com/picture/image-20200514101324454.png

(2)detect_image()将图片缩放成416x416大小,调用yolo_model(),生成13x13、26x26与52x52等3个feature map的输出,对这3个feature map进行预测,调用yolo_eval()函数得到目标框、目标框得分和类别,然后使用Pillow对发现的每一类对象的每一个目标框,绘制标签、框和文字:

https://lddpicture.oss-cn-beijing.aliyuncs.com/picture/image-20200514101345475.png

https://lddpicture.oss-cn-beijing.aliyuncs.com/picture/image-20200514101414591.png

(3)在yolo_eval()函数中调用yolo_boxes_and_scores()得到目标框、目标框得分和类别。而在yolo_boxes_and_scores()函数中,先调用yolo_head()函数计算每一个网格的目标对象的中心点坐标box_xy和目标框的宽与高box_wh,以及目标框的置信度box_confidence和类别置信度box_class_probs;然后调用yolo_correct_boxes(),将box_xy, box_wh转换为输入图片上的真实坐标,输出boxes是框的左下、右上两个坐标(y_min, x_min, y_max, x_max):

https://lddpicture.oss-cn-beijing.aliyuncs.com/picture/image-20200514101442195.png

https://lddpicture.oss-cn-beijing.aliyuncs.com/picture/image-20200514101458697.png

(4)完整的代码流程图如下图所示:

https://lddpicture.oss-cn-beijing.aliyuncs.com/picture/image-20200514101559843.png

2.4 Darknet 安装使用

mkdir build-release
cd build-release
cmake ..
make
make install
#test install
`./darknet detector test ./cfg/coco.data ./cfg/yolov4.cfg ./yolov4.weights`
#YOLO2
$ ./darknet detector test ./cfg/voc.data ./cfg/yolov2.cfg ./yolov2.weights data/dog.jpg -i 0 -thresh 0.2
#Yolo3
$ ./darknet detector test ./cfg/coco.data ./cfg/yolov3.cfg ./yolov3.weights data/dog.jpg -i 0 -thresh 0.25
$ ./darknet detector demo ./cfg/coco.data ./cfg/yolov3.cfg ./yolov3.weights test50.mp4 -json_port 8070 -mjpeg_port 8090 -ext_output

2.5 Python Demo

from ctypes import *
import math
import random
import os
import cv2
import numpy as np
import time
import darknet

def convertBack(x, y, w, h):
    xmin = int(round(x - (w / 2)))
    xmax = int(round(x + (w / 2)))
    ymin = int(round(y - (h / 2)))
    ymax = int(round(y + (h / 2)))
    return xmin, ymin, xmax, ymax


def cvDrawBoxes(detections, img):
    for detection in detections:
        x, y, w, h = detection[2][0],\
            detection[2][1],\
            detection[2][2],\
            detection[2][3]
        xmin, ymin, xmax, ymax = convertBack(
            float(x), float(y), float(w), float(h))
        pt1 = (xmin, ymin)
        pt2 = (xmax, ymax)
        cv2.rectangle(img, pt1, pt2, (0, 255, 0), 1)
        cv2.putText(img,
                    detection[0].decode() +
                    " [" + str(round(detection[1] * 100, 2)) + "]",
                    (pt1[0], pt1[1] - 5), cv2.FONT_HERSHEY_SIMPLEX, 0.5,
                    [0, 255, 0], 2)
    return img


netMain = None
metaMain = None
altNames = None


def YOLO():

    global metaMain, netMain, altNames
    configPath = "./cfg/yolov3.cfg"
    weightPath = "./yolov3.weights"
    metaPath = "./cfg/coco.data"
    if not os.path.exists(configPath):
        raise ValueError("Invalid config path `" +
                         os.path.abspath(configPath)+"`")
    if not os.path.exists(weightPath):
        raise ValueError("Invalid weight path `" +
                         os.path.abspath(weightPath)+"`")
    if not os.path.exists(metaPath):
        raise ValueError("Invalid data file path `" +
                         os.path.abspath(metaPath)+"`")
    if netMain is None:
        netMain = darknet.load_net_custom(configPath.encode(
            "ascii"), weightPath.encode("ascii"), 0, 1)  # batch size = 1
    if metaMain is None:
        metaMain = darknet.load_meta(metaPath.encode("ascii"))
    if altNames is None:
        try:
            with open(metaPath) as metaFH:
                metaContents = metaFH.read()
                import re
                match = re.search("names *= *(.*)$", metaContents,
                                  re.IGNORECASE | re.MULTILINE)
                if match:
                    result = match.group(1)
                else:
                    result = None
                try:
                    if os.path.exists(result):
                        with open(result) as namesFH:
                            namesList = namesFH.read().strip().split("\n")
                            altNames = [x.strip() for x in namesList]
                except TypeError:
                    pass
        except Exception:
            pass
    #cap = cv2.VideoCapture(0)
    cap = cv2.VideoCapture("test.mp4")
    cap.set(3, 1280)
    cap.set(4, 720)
    out = cv2.VideoWriter(
        "output.avi", cv2.VideoWriter_fourcc(*"MJPG"), 10.0,
        (darknet.network_width(netMain), darknet.network_height(netMain)))
    print("Starting the YOLO loop...")

    # Create an image we reuse for each detect
    darknet_image = darknet.make_image(darknet.network_width(netMain),
                                    darknet.network_height(netMain),3)
    while True:
        prev_time = time.time()
        ret, frame_read = cap.read()
        frame_rgb = cv2.cvtColor(frame_read, cv2.COLOR_BGR2RGB)
        frame_resized = cv2.resize(frame_rgb,
                                   (darknet.network_width(netMain),
                                    darknet.network_height(netMain)),
                                   interpolation=cv2.INTER_LINEAR)

        darknet.copy_image_from_bytes(darknet_image,frame_resized.tobytes())

        detections = darknet.detect_image(netMain, metaMain, darknet_image, thresh=0.25)
        image = cvDrawBoxes(detections, frame_resized)
        image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
        print(1/(time.time()-prev_time))
        cv2.imshow('Demo', image)
        cv2.waitKey(3)
    cap.release()
    out.release()

if __name__ == "__main__":
    YOLO()

3. Papar Record

https://lddpicture.oss-cn-beijing.aliyuncs.com/picture/image-20200426200103526.png

level: CVPR CCF_A author: Zhi Zhang, Tong He amazon web services date: 2019.2.15 keyword:

  • yolo4, object detection

Paper: YOLO4

Summary

  1. recognize the special property of multiple object detection task which favors spatial preserving transfroms, and thus proposed a visually coherent image mixup methods for object detection tasks.
  2. explore detailed training pipelines including learning rate scheduling weight decay and synchronized BatchNorm.
  3. learn some training tricks in AI.

Proble Statement

previous work:

  • Scattering tricks from Image Classification:
    • Learning rate warm up heuristic: to overcome the negative effective of extremely large mini-batch size.
    • Label smoothing: modifies the hard ground truth labeling in cross entropyloss.
    • Mixup strategies: alleviate adversarial perturbation
    • Cosine annealing strategy : for learning rate decay compared to traditional step policy.
    • Bag of tricks: some training strategies.

Methods

https://lddpicture.oss-cn-beijing.aliyuncs.com/picture/image-20200426201633444.png

【Function1】Visually Coherant Image Mixup for object detection

  • continues increasing the blending ratio used in the mixup, the objects in resulting frames are more vibrant and coherent to the natural presentations.
  • use geometry preserved alignment for image mixup to avoid distort image at the initial steps.

https://lddpicture.oss-cn-beijing.aliyuncs.com/picture/image-20200425103925238.png

https://lddpicture.oss-cn-beijing.aliyuncs.com/picture/image-20200425104052552.png

https://lddpicture.oss-cn-beijing.aliyuncs.com/picture/image-20200425104025525.png

Function 2Classification head label smoothing

  • traditional detection networks often compute a probability distribution over all classes with softmax function:$p_i=e^{z_i}/\sum_je^{z_j}$, $z_is$ are the unnormalized logits directly from last linear layer for classification prediction. $p$ :ouput distibution, $q$: the ground truth distribution, often a one-hot distribution, causing $L=\sum_iq_ilogp_i$ to be too confident in its predictions and is prone to over-fitting.
  • Label smoothing as a form of regularization is : $q_i’=(1-\epsilon)q_i+\epsilon/K$, $K$ is the total number of classes, $\epsilon$ is a small constant.

【Function 3】 Data Pre-processing

  1. Random geometry transformation: random cropping(with constraints), random expansion, random horizontal flip and random resize(with random interpolation)
  2. Random color jittering including: brightness, hue, saturation, and contrast.
  • For image classification domain, the network is extremely tolerant to image geometrical transformation.
  • single-stage detector network: the final ouput are generated from every single pixel on feature map.
  • multi-stage proposal and sampling based approached: many ROI candidates are generated and sampled with a fixed number, needless for extensive geometric augmentations.

【Function 4】 Training Scheduler Revamping

  • Step scheduler has sharp learning rate transition which may cause the optimizer to re-stabilize the learning momentum in the next few iterations.
  • Cosine Schedule scales the learning rate according to the value of cosine function on 0 to Pi, it starts with slowly reducing large learning rate, then reduces the learning rate quickly halfway ad finally ends up with tiny slope reducing small learning rate until it reaches 0.
  • Warm up learning rate: to avoid gradient explosion during the initial training iterations.

https://lddpicture.oss-cn-beijing.aliyuncs.com/picture/image-20200425110046052.png

【Function 4】 Synchronized Batch Normalization

  • typical implementation of batch normalization working on multiple devices is fast(with no communication overhead), it inevitably reduces the size of bath size and causing slightly different statistics during computation.
  • Peng et al. prove the importance of synchronized batch normalization in object detection with the analysis.

【Function 5】 Random shapes training for single-stage object detection networks

  • To fit memory limitation and allow simpler batching, the fixed shapes are needed.
  • follow the approach of random shapes training as in Redmon et al.[1]

Conclusion

  • first to systematically evaluate the various training heuristics applied in different object detection pipelines, providing valuable practice guidelines for future researches.
  • proposed a visually coherent image mixup method designed for training object detection networks which is proved to be very effective in improving model generalization capabilities.
  • achieved up to 5%-30% absolute average precision improvement based on existing models without modifying network structure and the loss function, with no extra inference cost.
  • extended the research depth on object detection data augmentation domain that significantly strengthened the model generalization capability and help reduce over-fitting problems.

Notes 去加强了解

  • this article tell more about train tricks, and detail tricks are not clearly understand.
  • [1] J.RedmonandA.Farhadi.Yolov3: An incremental improvement. arXivpreprintarXiv:1804.02767,2018.
  • batch normalization:
    • Megdet: A large mini-batch object detector
    • Batch normalization: Accelerating deep network training by reducing internal covariate shift.
  • mixup:
    • The elephant in the room
    • mixup: Beyond empirical risk minimization

Wu D, Liao M, Zhang W, et al. YOLOP: You Only Look Once for Panoptic Driving Perception[J]. arXiv preprint arXiv:2108.11250, 2021.

Paper: YOLOP

Summary

  • We put forward an efficient multi-task network that can jointly handle three crucial tasks in autonomous driving: object detection, drivable area segmentation and lane detection to save computational costs, reduce inference time as well as improve the performance of each task. Our work is the first to reach real-time on embedded devices while maintaining state-of-the-art level performance on the BDD100K dataset.
  • The works we has use for reference including Multinet ([paper](https://arxiv.org/pdf/1612.07695.pdf?utm_campaign=affiliate-ir-Optimise media( South East Asia) Pte. ltd.156-99_national_R_all_ACQ_cpa_en&utm_content=&utm_source= 388939),code),DLT-Net (paper),Faster R-CNN (paper,code),YOLOv5scode) ,PSPNet(paper,code) ,ENet(paper,code) SCNN(paper,code) SAD-ENet(paper,code). Thanks for their wonderful works.

https://lddpicture.oss-cn-beijing.aliyuncs.com/picture/image-20211016201750735.png

https://lddpicture.oss-cn-beijing.aliyuncs.com/picture/image-20211016201802960.png

https://lddpicture.oss-cn-beijing.aliyuncs.com/picture/image-20211016200912351.png

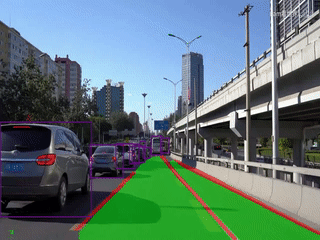

https://lddpicture.oss-cn-beijing.aliyuncs.com/picture/output1.gif
